Thermoplastic GPPS unidirectional tape is impregnated with PPS (polyphenylene sulfide) and laminated together to form a thermoplastic composite fiber reinforcement layer. Its tensile strength and bending strength are higher than PP resin thermoplastic unidirectional tape. It is a stable and lightweight material.
PPS UD Tape Features
- Wear-resistant and heat-stable PPS (Polyphenylene Sulfide) resin matrix.
- 0°/90° cross laying can be adopted to obtain stronger mechanical strength.

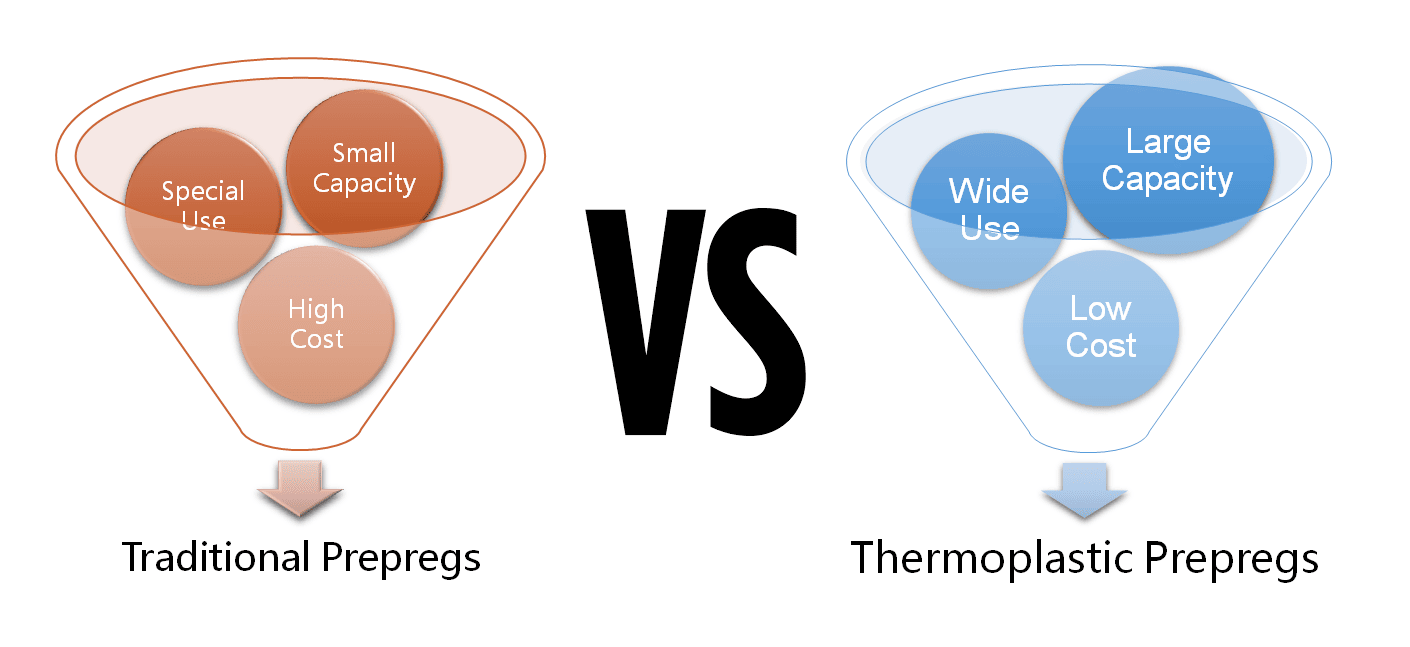

Traditional Prepregs VS Thermoplastic Prepregs
GPPS UD Tape Advantages
- Easy to use for continuous engineering and processing;
- Higher-strength and higher modulus (than long fiber and short fiber reinforced thermoplastic composites);
- Excellent compact resistance;
- Chemical resistance and no VOC;
- Environmentally friendly, repairable, and recyclable.
Our Craftsmanship
- Carbon fiber thermoplastic unidirectional tape and glass fiber thermoplastic unidirectional tape.
- The width can be customized from 500mm to 1200mm.
- The GPPS UD tapes can be added with optional materials like graphite, to meet the demand for UV resistance and aging resistance.
GPPS Unidirectional Tape Parameters
- T-UD series GPPS UD Tapes
| PROPERTIES | TEST STANDARDS | CONDITION | UNITS | TYPICAL VALUE |
|---|---|---|---|---|
| Fiberglass Content | / | 23℃ | Wt% | 48 |
| Density | / | 23℃ | g/cm3 | 1.75 |
| Tape Thickness | / | 23℃ | mm | 0.35 |
| Tensile Strength | ISO527 | 5mm/min | MPa | 550 |
| Tensile Modulus | ISO527 | 1mm/min | GPa | 26 |
| Flexural Strength | ISO14125 | 2mm/min | MPa | 550 |
| Flexural Modulus | ISO14125 | 2mm/min | GPa | 26 |
- Note1: Colored product performance may be different from the above values.
- Note2: Typical values are the average laboratory data only for reference, not a product standard.
- Note3: Above conditions only reference, different equipment, different molds, and product requirements, the process must be appropriately adjusted.
- GPPS UD Tapes with Carbon Black
| PROPERTIES | TEST STANDARDS | CONDITION | UNITS | TYPICAL VALUE |
|---|---|---|---|---|
| Fiberglass Content | / | 23 | %wt | 48 |
| Density | / | 23 | g/cm3 | 1.75 |
| Tape Thickness | / | 23 | mm | 0.35 |
| Tensile Strength | ISO527 | 5mm/min | MPa | 550 |
| Tensile Modulus | ISO527 | 1mm/min | GPa | 23-24 |
| Flexural Strength | ISO14125 | 2mm/min | MPa | 550 |
| Flexural Modulus | ISO14125 | 2mm/min | GPa | 23-24 |
- Note1: Colored product performance may be different from the above values.
- Note2: Typical values are the average laboratory data for reference only.
- Note3: Above conditions only reference, different equipment, different molds, and product requirements, the process must be appropriately adjusted.
Applications
- Infrastructure: Used in civil engineering applications to reinforce concrete structures.
- Aerospace: Used to reinforce structural components of aircraft, vehicles, helping to reduce weight and improve performance.
- Automotive: Used to manufacture lightweight components of vehicles such as chassis components and body panels.
- Marine: Used in ship construction to reinforce the hull and other structural elements.
- Sports and Recreation: Commonly used in the production of sporting goods such as bicycles, tennis rackets and skis.
- Wind Energy: Used in wind turbine blades to reinforce composite materials.
Customized Service
TOPOLO is dedicated to the research and design of new composite materials for lightweight solutions. Our products of continuous fiber-reinforced thermoplastic composites are ideal choices for your economical and high-quality requirements.
