Sliding Side Door Box Bodies

Home » Truck & Trailer Solutions » Truck Bodies

  • Easy-to-operate design.
  • High-strength & lightweight structure.
  • More cost-effective.
  • Quick assembly and disassembly.
  • Customizable kits.

The truck or trailer with a sliding side door has a simple structure and has more advantages than traditional hinged doors. It is widely used in urban distribution, express logistics, and especially in transporting large-sized goods.

Sliding side doors offer many benefits

Adapt to narrow areas

The sliding side door opens by sliding horizontally, without the need to expand outward like a swing door, so there is no need to reserve external space for the door to open. The vehicle can pass or park in narrow streets, warehouse doors or crowded loading and unloading areas.

Simple operation

The sliding side door is equipped with a lightweight guide rail and pulley system. The operator can easily push and pull it open and close with one hand, which is more time-saving and labor-saving than the swing door, so it is particularly suitable for vehicles with frequent loading and unloading.

Reduce safety risks

If the swing door is not fixed after opening, it may be accidentally closed due to wind or shaking, resulting in injuries to people; the trajectory of the sliding door is fixed, avoiding the risk of collision caused by the swing door “swinging outward”.

Efficient work

The sliding side door leaves more operating space for the porters. If the box body is designed as a double-sided sliding side door, the cargo can be loaded and unloaded on both sides at the same time, which is more efficient when used with a forklift or conveyor belt.

Low manufacturing and maintenance costs

The sliding side door box body has a low construction cost due to its simple design. The mechanical structure of the sliding door is simpler than that of the swing door, with a low failure rate. Daily maintenance only requires regular lubrication of the guide rail.


TOPOLO sliding door box body combines advanced composite materials, modular design and precision manufacturing.

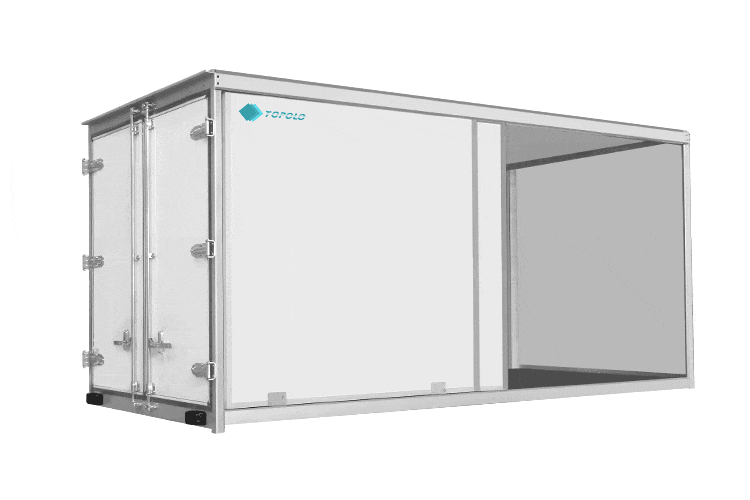

Sliding Side Door Box Bodies

Product Features

  • Double side sliding doors + rear doors.
  • Assembled from one piece composite panels.
  • High-strength metal accessories.
  • Bolt all parts together.

Configuration

  • External dimensions: 4200x2100x2100mm or customized.
  • Body panels: FRP sandwich panels.
  • Galvanized steel subframe.
  • Anti-slip composite flooring.
  • Aluminum extruded corner profiles.
  • Aluminum corner caps.

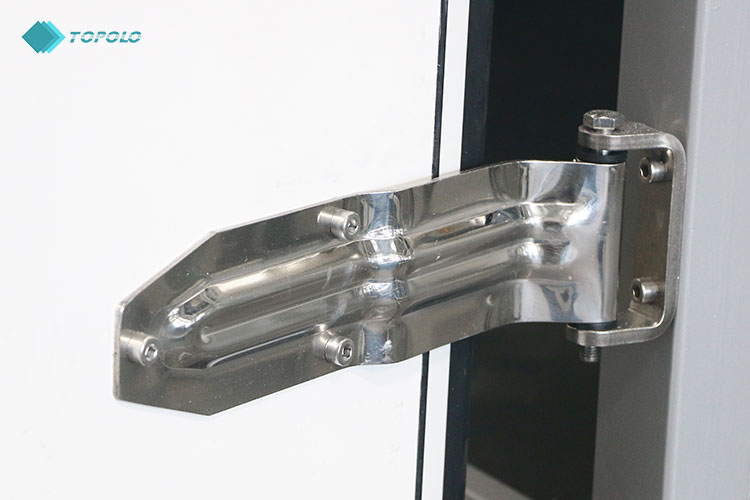

  • Stainless steel rear door hinges

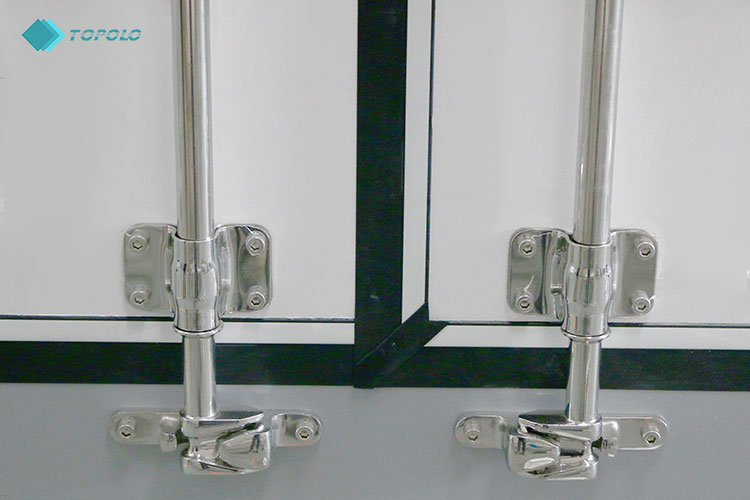

  • Stainless steel exposed locking rod.
  • EPDM rubber seals.

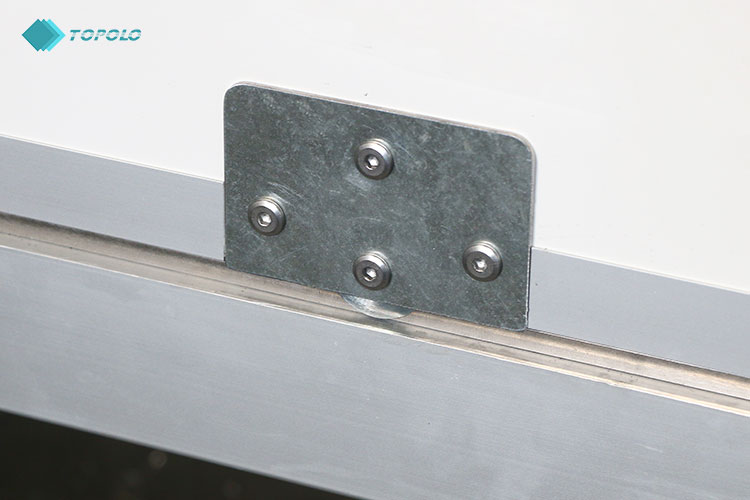

  • Stainless steel rails and pulleys.
  • Stainless steel rear door frame.
  • Rubber bumpers.

Use of Diverse Composite Materials

Different types of composite panels are used in various parts of the sliding side door box body. Multiple composite materials enhance the structural strength of the box body and achieve lightweight. TOPOLO new FRP composite materials (XPS foam core sandwich panels, PET foam core sandwich panels, plywood core sandwich panels, polypropylene honeycomb core sandwich panels) are cleverly used in different parts of the box body.

Structure & Material

  • Front box panels: FRP skin XPS foam sandwich panels.
  • Side box panels: FRP skin PET foam sandwich panels.
  • Side sliding doors: FRP skin plywood sandwich panels.
  • Top panels: FRP skin XPS foam sandwich panels.
  • Rear doors: FRP skin PET foam sandwich panels.
  • Bottom panels: Non-slip polypropylene honeycomb panels.

TOPOLO – Expert in Building Truck and Trailer Box Bodies

TOPOLO specializes in high-performance truck and trailer box bodies that combine cutting-edge material science, innovative design and rigorous engineering. Our solutions are tailored to meet diverse industry needs.

Contact us to discover how our composite solutions can help transform your fleet.
