Motorcycle cargo trailers are small trailers specifically designed to be hitched to motorcycles, allowing riders to carry additional luggage or cargo that wouldn’t fit on the bike itself. These trailers are great for long trips, camping, or transporting bulky items.
Our Customized Services
- Cargo Trailer Design.
- Assembled Cargo Trailers.
- Cargo Trailer Bulk Kits.
Description
Completely Closed Design
| Dimensions (L x W x H) | Volume (m³) |
|---|---|
| 1.22 m x 1.83 m x 1.22 m | 2.70 m³ |
| 1.52 m x 2.44 m x 1.52 m | 5.62 m³ |
| 1.83 m x 3.66 m x 1.83 m | 12.10 m³ |
| 2.13 m x 4.27 m x 2.13 m | 19.14 m³ |
| 2.13 m x 4.88 m x 2.13 m | 22.56 m³ |
| 2.59 m x 6.10 m x 2.13 m | 33.58 m³ |
| 2.59 m x 7.32 m x 2.13 m | 38.20 m³ |
| 2.59 m x 8.53 m x 2.13 m | 46.86 m³ |
| 2.59 m x 9.75 m x 2.13 m | 55.52 m³ |
Completely Closed Design
The trailer adopts a modular design, which is precisely composed of several one-piece composite panels. Each panel has been strictly processed to ensure excellent performance in load-bearing, durability and corrosion resistance. This design not only improves the overall structural stability of the trailer, but also makes the replacement and maintenance of each component more convenient and quick.
New Materials Bring More Reliable Performance
Topolo offers a variety of composite panels for your cargo truck project to suit your business requirements. They feature a smooth exterior and a solid interior for dependable durability. Fiberglass composite panels, emerged in the production of dry cargo boxes. It is lighter and stronger, which is the future development trend of box trucks.
PET Foam Sandwich Panels
- Without any glue, no risk of delamination.
- Made of continuous glass fiber for better impact resistance.
- UV resistant.
- Waterproof, moisture-proof, anti-corrosion.
- Longer service life.
- 100% recyclable.

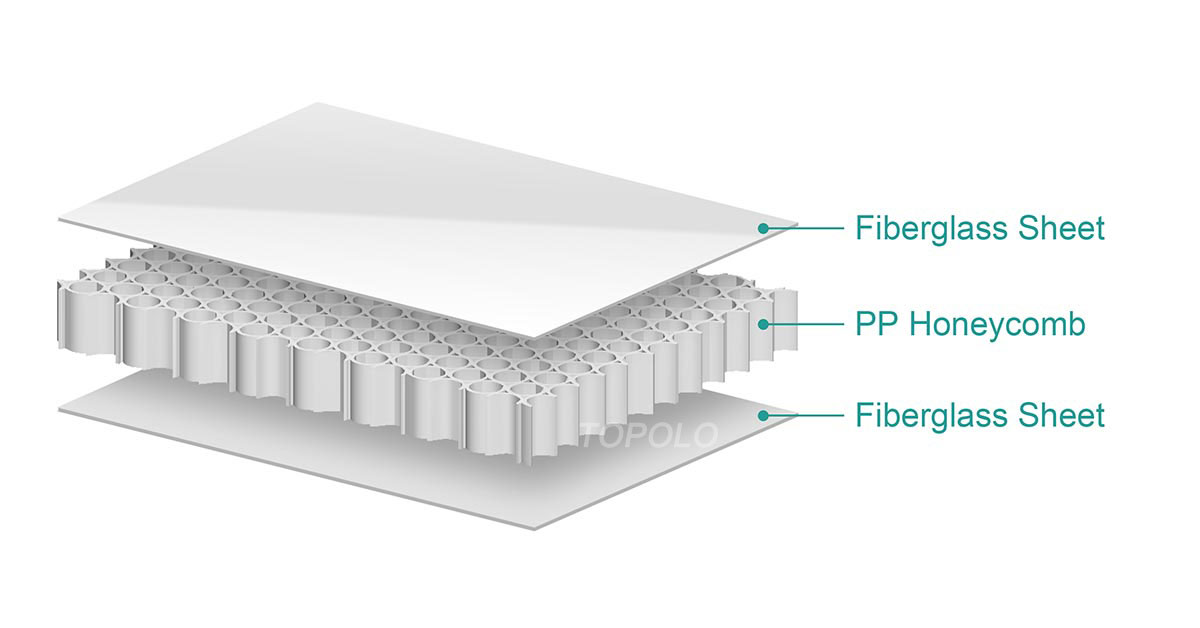

Polypropylene (PP) Honeycomb Panels
- The most economical and lightest composite materials.
- 100% glue-free, skin and core are fused together.
- 100% recyclable.
- 50% of the weight of plywood of the same thickness.
- Flat surface, scratch-resistant, impact-resistant.
- UV resistant surface.
- Daily production 8,000 square meters.
Fiberglass Plywood Panels
Waterproof grade plywood ensures the longevity of the truck body.
- Strong and durable.
- Scratch-resistant.
- Chemical resistant.
- Impact resistant.
- UV resistant.
- Water proof.
Flexible Chassis System
The chassis carries the core functions of the enclosed trailer, equipment, and food, and also determines the trailer’s mobility, stability, and safety.
Chassis Frame
The selection of chassis frame materials must take into account factors such as load-bearing capacity, corrosion resistance, lightness, and cost. We provide trailer chassis with steel and aluminum structures.
| Material | Advantages | Disadvantages |
| Ordinary Carbon Steel (Q235) | Low cost, easy to process, suitable for moderate load requirements | Weak corrosion resistance, requires regular maintenance (painting/galvanizing) |
| Low-Alloy High-Strength Steel (Q345) | High strength, light weight, good fatigue resistance, long service life | Still requires anti-corrosion maintenance, higher cost than ordinary carbon steel |
| Stainless Steel (304/201) | Extremely strong corrosion resistance, clean appearance, low maintenance cost | High cost, slightly heavy weight, relatively high processing difficulty |
| Aluminum Alloy (6061/5052) | Extremely light weight, reduces traction energy consumption, simple maintenance | Lower strength than steel, complex welding process, prone to deformation after collision and difficult to repair |
Tires and Wheels
- Tires are made of high-performance synthetic rubber with good high and low temperature resistance and wear resistance.
- Steel or aluminum alloy wheels are available.
| Type | Size | Single tire load range |
|---|---|---|
| Single axle | ST175/80R13, 205/75R15 | 500-800kg |
| Double axle trailer | ST225/75R16, 235/80R16 | 800-1200kg |
| Three-axle trailer | ST235/80R17.5, 245/75R19.5 | 1200-2000kg |
TOPOLO – Enclosed Trailer OEM/ODM
TOPOLO designs and manufactures enclosed trailers in different sizes in form of CKD/SKD. From small and lightweight to large and heavy-duty trailers, they can be customized to suit the scenario, type and size of the goods being transported. They can also be designed with a specific appearance and logo according to customer requirements.
Serve The Global Market
TOPOLO supplies cargo trailers to the global market, greatly simplifying the process of handling truck projects for local companies. Our trailer products have been exported to international markets such as Europe, Africa, South America, North America, Central Asia, Southeast Asia, etc.
