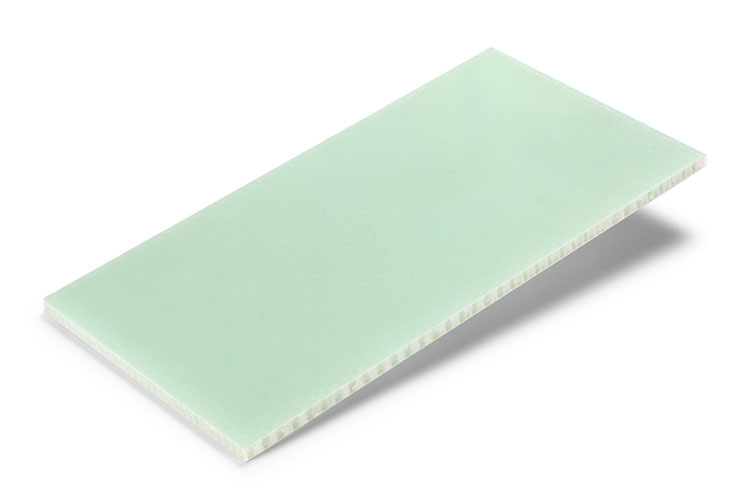

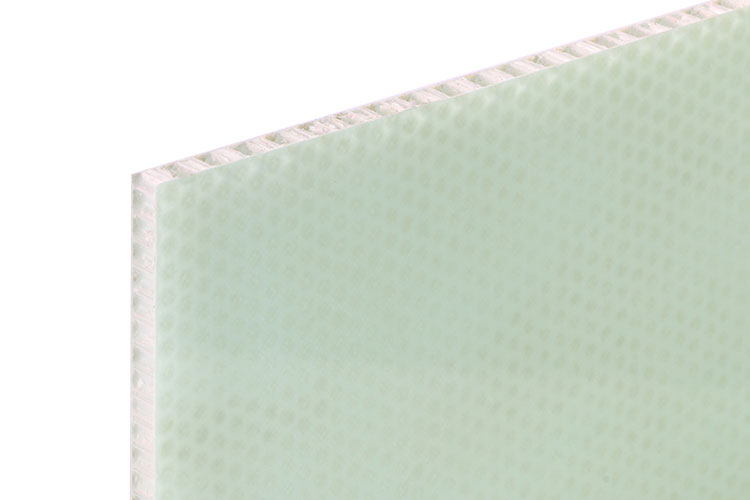

Basic Specifications
- Total Thickness: 10mm.
- Color: White, green etc.

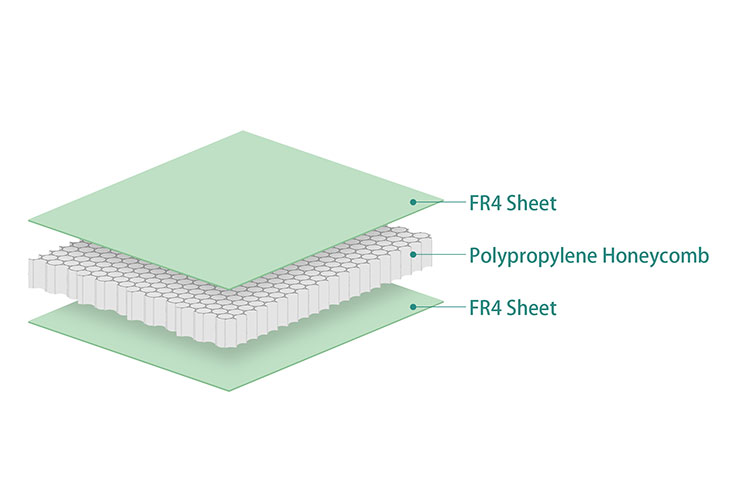

- Top Layer: 1.0mm FR4 sheet.
- Core Layer: 80kg/m³ PP(polypropylene) honeycomb. (Customized 60~160kg/m³)
- Bottom Layer: 1.0mm FR4 sheet.
- Area Weight: 2.9kg/m².
Description
The skin of the honeycomb panel uses FR4 sheets suitable for carbon printing. FR4 sheets have good insulation properties, heat resistance, moisture resistance and good machinability. Its surface is flat, smooth and without pits. After repeated trials and data comparison, we controlled the size of the honeycomb holes to a range that is most suitable for pickleball movement. FR4 high hardness is combined with high toughness PP honeycomb core to achieve the best impact resistance and slap resistance.
Product Advantages
- Light weight and high strength.
- Superior flatness and rigidity.
- Moisture-proof and waterproof.
- Low noise.
- Excellent elasticity.
FR4 honeycomb panel vs CFRT honeycomb panel
- More flame resistant and better thermal stability
Compared with CFRT materials, FR4 epoxy resin as a pickleball racket skin will be more flame-resistant, will not be excessively worn due to high temperature or long-term friction of the racket, and has good thermal stability and structural stability.
- Smoother surface
Epoxy resin is a fiberglass fabric with a gel coat added. The fiberglass arrangement is more regular and the surface is smoother. It can be lighter and thinner while maintaining excellent toughness.
- Better corrosion resistance
FR4 glass fiber has good corrosion resistance to many chemical solvents and highly corrosive substances. During the actual use of the Pique racket, there is no need to worry about damage to the racket, and the service life is longer.
