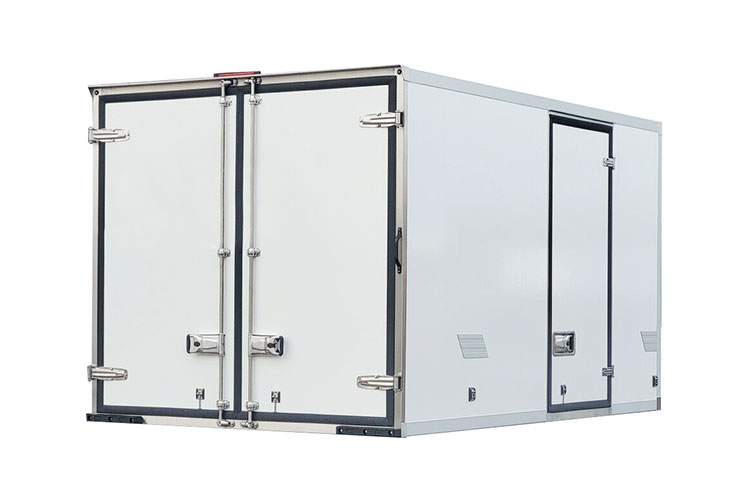

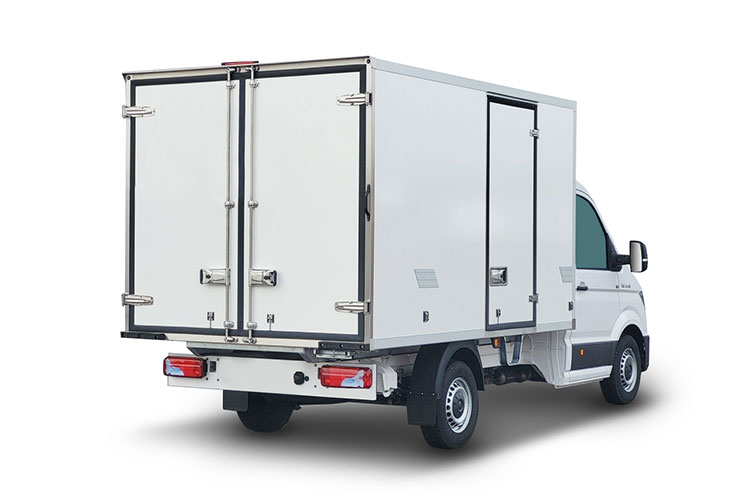

The 3.4m length closed box is specially designed for pickup or light truck chassis, mainly used for short-distance cold chain material transportation. It can accurately maintain the low-temperature environment inside the box, effectively ensuring the freshness and quality of perishable goods such as fresh food, aquatic products and pharmaceuticals during transportation. In addition, its overall size and load-bearing design are fully matched with the loading capacity of pickup trucks and light trucks, which can avoid problems such as unbalanced center of gravity caused by improper matching, and further ensure the stability and safety of the transportation process.
Description
Performance Advantages
- Strong Insulation: Low thermal conductivity core material reduces cooling loss.
- Efficient Delivery: Three rear doors and eight pallets are suitable for multi-point delivery.
- Lightweight Design: Reduces fuel consumption and improves transportation efficiency.
- Durable Construction: GRP composite material resists corrosion and impact, extending service life.
Typical Applications
- Fresh Food Delivery (Fruits, Vegetables, Meat, Seafood).
- Cold Chain Transportation of Dairy Products and Beverages.
- Pharmaceutical Cold Chain Logistics.
- Multi-Point Distribution for Urban Supermarkets.
Specification
| Dimensions (LxWxH) | 3450 x 2100 x 1900mm or customized |
| Box panels | FRP skin polyurethane foam sandwich panel |
| Floor | Patterned aluminum plate. |
| Panel thickness | Top plate: 80mm |
| Side panel: 80mm | |
| Front panel: 80mm | |
| Door panel: 80mm | |
| Floor panel: 100mm | |

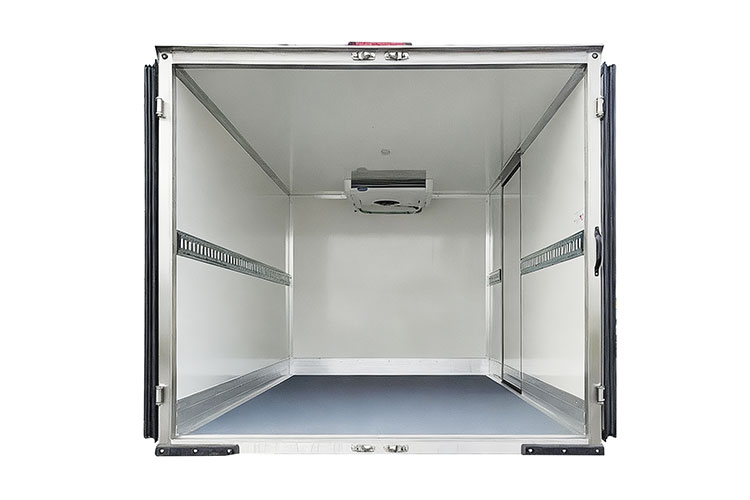

| Door design | Two rear door + side door |
| Door frame | Stamped mirror 304 stainless steel |
| Door retainer | Hook type, 304 stainless steel |
| Hinge | 304 stainless steel |

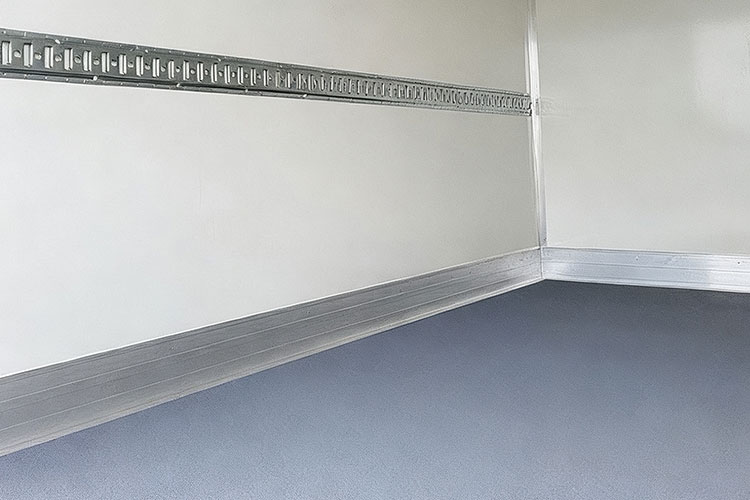

| Cargo rail | Horizontal E-track, 304 stainless steel |
| Door lock | Exposed lock bar, 304 stainless steel |
| Connecting profile | 6061 aluminum alloy extrusion profile |
| Subframe | Z750 galvanized steel |
| 6061 aluminum alloy | |
| Door seal | EPDM rubber |
| Refrigeration unit (Optional) | Thermo King, Carrier, Supersnow, etc |
| Customizable accessories | Signal lights, meat hooks, support rods, lifting tailgates, ventilation fans, door curtains, interior lights, ventilation fans, bumper strips, etc. |
TOPOLO – CKD/SKD/CBU refrigerated truck body manufacturer
TOPOLO offers refrigerated truck bodies that can be towed by any simple pickup truck or sedan. These coolers come in sizes of 5, 6, 8, and 12 feet. They feature a fiberglass shell and are available with PU or XPS insulation.
Rapid assembly improves efficiency
The modular refrigerated box feature a quick-assembly structure that allows for installation and disassembly without specialized tools, reducing labor time and improving assembly efficiency. Traditional refrigerated box assembly typically requires a team of 4-6 professionals working 8-10 hours, involving heavy lifting, complex tools, and repeated adjustments. In contrast, TOPOLO’s rapid assembly process overcomes the time-consuming and labor-intensive challenges of traditional equipment installation. The innovative “two people + two hours = one box” assembly concept significantly reduces labor input and sets a new benchmark for assembly efficiency in the cold chain industry.
Are you struggling with recurring issues with refrigerated box?
- Refrigeration unit vibration → cracked front panel?
- Frequent opening and closing/collision → door frame deformation or door jamming?
- Cargo impact → wall bulging (swelling)?
- Forklift loading and unloading → floor damage and collapse?
- Weak connections?
- Short service life?
01. The perfect combination of strength and thermal insulation solves these problems
Weather-resistant outer skin
- UV-resistant FRP/GRP sheets are used for the exterior skin of refrigerated boxes. They are resistant to sunlight, marine weather, rain, and snow. They offer a service life of over ten years and retain their vibrant color. TOPOLO has developed a variety of FRP sheets (thermoplastic and thermoset) for insulation panels to achieve a balance between performance and cost.
High-quality thermal insulation core material
- The insulation core material is preferably extruded polystyrene (XPS) or polyurethane (PU) or polyester foam. These foams have extremely low thermal conductivity and excellent thermal insulation performance, which ensures the high efficiency of the refrigeration unit.
High-strength embedded “skeleton”
- The interior of the refrigerated box panel has been processed and pre-embedded with “skeletons” made of various lightweight materials. These “skeletons” are distributed at the edges, corners and other stress-prone areas of the panel, enhancing the panel’s resistance to damage. Even under frequent loading and unloading, stacked transportation or extreme road conditions, the panel can be prevented from denting or breaking due to external forces.
02. Specifications of refrigerated box panels
| Outer Skin | FRP (Glass fiber reinforced plastic) sheet. | |||||
| CFRT (Continuous fiber reinforced thermoplastic) sheet. | ||||||
| Core Material | Density (kg/m³) | Thermal insulation (W/(m·K)) | Compressive strength (KPa) | Water – absorption | Dimensional stability (70±2 ℃ / 48H) |
|
| XPS (Extruded Polystyrene) | 35 – 50 | ≤0.025 | 400 – 550KPa | 1% | ≤1.5% | |
| PU (Polyurethane) | 28 – 50 | ≤0.022 | ≥200KPa | 1.8% | ≤1.5% | |
| PET (Polyethylene Terephthalate) | 60 – 300 | ≤0.034 | 750 -1800KPa | ≤0.05% | ≤0.05% | |
| Inner Skin | FRP (Glass fiber reinforced plastic) sheet. | |||||
| CFRT (Continuous fiber reinforced thermoplastic) sheet. | ||||||
| Panel Length | ≤15800mm | |||||
| Panel Width | ≤3000mm | |||||
| Panel Thickness | XPS foam core: 17-150mm. | |||||
| PU foam core: 25-150mm. | ||||||
| PET foam core: 5-150mm. | ||||||
Meticulous design fully improve the performance of refrigerated box
Pay attention to every detail from inside to outside
01. Higher impact resistance side wall panels
- RV-grade exterior skin with no exposed bolts, a smooth, smooth surface, and easy cleaning and maintenance.
- Proprietary micro-foaming technology withstands temperatures up to 80°C, preventing core material expansion.
- Multi-layer continuous fiberglass inner skin provides enhanced impact resistance, reduced weight, and durability.
- Patented fully enclosed structural design prevents moisture from penetrating the panels, resulting in enhanced thermal insulation and a longer service life.
Custom accessories
- Emergency escape system.
- Various side door types.
- Various door lock types.
- High-performance rubber seals.
- Baseboards.
02. 100% waterproof floor panels
- Lightweight, high-strength composite structure withstands 20,000 load cycles.
- Eliminates thermal bridges and minimizes heat transfer.
- Reinforced components are available upon request.
Surface floor selection
03. Removable insulation partitions
- Dividers divide the box into multiple temperature zones, allowing cargo with different temperature requirements to be transported simultaneously within a single box.
- The foldable and removable design allows for flexible space utilization.
- Rubber seals on the edges minimize air flow.
04. Multifunctional roof panels
- Thicker panels provide improved thermal insulation.
- High-capacity suspension rail system, capable of supporting over 15 tons.
- Concealed air ducting.
- Concealed electrical wiring ducting.
- Concealed evaporator ducting.
05. Reinforced front panels
- Stronger construction resists vibration, impact, and tearing. Suspends heavier cooling units.
- Thickened panels minimize wind-induced temperature loss.
- Concealed electrical wiring and plumbing.
06. Easy-to-operate doors
- Perfectly sealed, waterproof design, and resistant to extreme weather.
- Patented design for easier opening and closing.
- High-strength 304 stainless steel door frame.
07. Adjustable subframe
- Adjustable crossbar and longitudinal beam spacing, compatible with major truck chassis brands.
- Constructed from high-strength galvanized steel with a yield strength of 700 MPa.
- Bolt-connected components provide a secure, durable structure and easy maintenance.
Customizable kits for refrigerated boxes
TOPOLO provides a full range of accessories, from standard to non-standard, to meet the functional upgrade and scene adaptation needs of refrigerated boxes.
- Well-known brands include Thermo King, Carrier, Supersnow, etc.
- Manual/electric insulated roll-up door for easy opening and closing.
- Made of mirrored stainless steel, it can be designed with different locking methods.
- Made of high-strength stainless steel, with a door opening angle greater than 180°.
- Made of strong stainless steel, specially used for meat transportation, with a maximum load-bearing capacity of 200kg.
- Suspension design, easy to install, stable operation, and maintains balanced temperature inside the box.
- Available in galvanized steel and stainless steel, in vertical and horizontal designs.
- You can choose cantilever, column or retractable lift tailgate.
- High-strength aluminum alloy extrusion profiles, customizable design styles.
- Made of high-strength galvanized steel, with a folding design that allows it to be folded away while the refrigerated truck is moving.
- You can choose from handle type, magnetic type, buckle type, latch type and other types.
- The telescopic structure can be adjusted to the appropriate length according to the size of the box and the quantity of goods.
- Made of transparent or translucent PVC, it effectively reduces cold air loss during loading and unloading.
- Made of high-hardness aluminum alloy to prevent cargo from damaging the inner walls of the box.
- Multi-tooth EPDM rubber sealing strip for better sealing effect.
- Customized according to specific box dimensions and application requirements to perfectly fit the vehicle shape.
Start your project
Start your refrigerated truck project and let our engineers design your refrigerated box. Whether you’re focusing on fresh produce delivery, pharmaceutical cold chain, or expanding into specialized cargo transportation, our solutions ensure cargo quality and reduce operating costs.
