Specifications Thickness: 32mm. (Customizable: 10-120mm) Maximum length: 12m. Maximum width: 3.2m. Outer skin: 1.3mm 5052 aluminum alloy sheet. Core material: XPS (extruded polystyrene) foam. (Density: 50kg/m³) Reinforcement layer: 6.0mm waterproof plywood. Inner skin: 1.3mm woven coarse sand FRP sheet. Panel area weight: 10.1kg/㎡.
Specifications Total Thickness: 61.0mm. (Customized: ≤120mm) Length: ≤12m. Width: ≤3.2m. Outer skin: 1.5mm pre-painted aluminum sheet. Core Layer: 45kg/m³ XPS (extruded polystyrene) foam. Ribs: Extruded aluminum tube. Reinforcement board: 6mm plywood. Inner skin: 1.2mm CFRT sheet.
Basic Specifications Total Thickness: 65.0mm. (Customized: 10~120mm) Length: ≤12m. Width: ≤3.2m. Surface Color: Customized RAL color. Top Layer: 2.0mm glossy gelcoat FRP sheet. (Customized: 0.7~5.0mm) Core Layer: 50kg/m³ XPS (extruded polystyrene) foam. (Customized: 35~50kg/m³) Bottom Layer: 2.0mm glossy gelcoat FRP sheet. (Customized: 0.7~5.0mm) Embedded Material: Marine plywood.

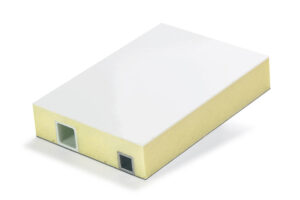

TOPOLO is a professional fiberglass XPS foam sandwich panel manufacturer, providing reliable sandwich panels for various applications. As the most professional composite panel manufacturer in China, we provide the most reliable solutions according to users' application needs. Size: Customized. Brand: TOPOLO. Daily Capacity: ≥1000㎡. MOQ: 10 pieces. Certification: ISO9001, SGS. Origin: China.
Basic Specifications Total Thickness: 31.0mm. (Customized: 10~120mm) Length: ≤12m. Width: ≤3.2m. Surface Color: Customized RAL color. Surface Treatment: Glossy gelcoat. Upper Surface Layer: 2.0mm black gelcoat FRP sheet. (Customized: 0.7~5.0mm) Core Layer: 50kg/m³ XPS (extruded polystyrene) foam. (Customized: 35~50kg/m³) Lower Surface Layer: 2.0mm white gelcoat FRP sheet. (Customized: 0.7~5.0mm) Area Weight: 11.17kg/m².
Basic Specifications Total Thickness: 28.0mm. (Customized: 10~120mm) Length: ≤12m. Width: ≤3.2m. Upper Surface Layer: 1.3mm woven fabric texture FRP sheet. (Customized: 0.7~5.0mm) Core Layer: 35kg/m³ XPS (extruded polystyrene) foam. (Customized: 35~50kg/m³) Lower Surface Layer: 1.3mm woven fabric texture FRP sheet. (Customized: 0.7~5.0mm) Area Weight: 5.53kg/m². Applications: Dry freight bodies.
Basic Specifications Total Thickness: 26.0mm. (Customized: 10~120mm) Width: Max 2.6m. Length：Max 12m. Top Surface: 0.5mm white 3003 aluminum sheet. (Customized: 0.1~3.0mm) Core Material: 35kg/m³ XPS foam. (Customized: 35~50kg/m³) Bottom Surface: 0.5mm gray 3003 aluminum sheet. (Customized: 0.1~3.0mm)
Basic Specifications Total Thickness: 100.0mm. (Customized: 10~120mm) Width: Max 3.2m. Length：Max 12m. Top Surface: 2.0mm FRP sheet. (Customized: 0.7~5.0mm) Core Material: 40kg/m³ XPS foam. (Customized: 35~50kg/m³) Bottom Surface: 2.0mm FRP sheet. (Customized: 0.7~5.0mm) Area Weight: 8.93kg/m².

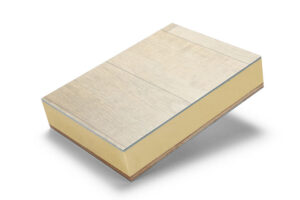

Basic Specifications Total Thickness: 65.0mm. (Customized: 10~120mm) Width: Max 3.2m. Length：Max 12m. Top Surface: 2.0mm wood grain vinyl leather + 2.0mm FRP sheet. Core Material: 35kg/m³ XPS(polystyrene) foam. (Customized: 35~50kg/m³) Bottom Surface: 10.0mm plywood + 2.0mm FRP sheet. Area Weight: 17.4kg/m². Application: RV flooring.
Basic Specifications Total Thickness: 40.0mm. (Customized: 10~120mm) Length: ≤12m. Width: ≤2.8m. Surface Color: White. Top Surface Layer: 1.2mm CFRT sheet. (Customized: 0.4~2.0mm) Core Layer: 40kg/m³ XPS (extruded polystyrene) foam. (Customized: 35~50kg/m³) Bottom Surface Layer: 1.2mm CFRT sheet. (Customized: 0.4~2.0mm)
Basic Specifications • Total Thickness: 32.0mm. (Customized) • Upper Layer: 1.6mm CFRT + 3.0mm fiberglass mat thermoplastic. • Core Material: 40kg/m³ XPS foam. • Lower Layer: 2.0mm FRP sheet. • Area Weight: 6.5kg/m²
Basic Specifications Total Thickness: 54.0mm. (Customized: 10~120mm) Width: Max 2.8m. Length：Max 12m. Top Surface: 1.2mm CFRT sheet add PET film. (Customized: 0.4~2.0mm) Core Material: 40kg/m³ XPS(polystyrene) foam. (Customized: 35~50kg/m³) Bottom Surface: 1.2mm CFRT sheet add PET film. (Customized: 0.4~2.0mm) Area Weight: 6.4kg/m².
