The development of caravans is becoming more and more lightweight. Since the caravan needs power system traction, too much weight will hinder its operation. The traditional construction method is to use timber to build the frame first, then fill the core material, and finally cover facing skin material. This manufacturing method is not only time-consuming and laborious, but also greatly increases the weight. The caravan composite panels developed by TOPOLO use a new one-piece manufacturing process, which not only reduces the weight of the caravan, but also increases its strength.

Specifications

Skin Material	FRP Sheet, Aluminum Sheet
Width	≤3.2m
Total Thickness	10~120mm
Length	≤12m
Core Density	30~300kg/m³
Surface Color	RAL Color Series
Core Material	XPS Foam, PU foam, PET foam, PVC foam, EPP Foam, MPP Foam, PP Honeycomb
Processing	CNC machining, Embedded structure

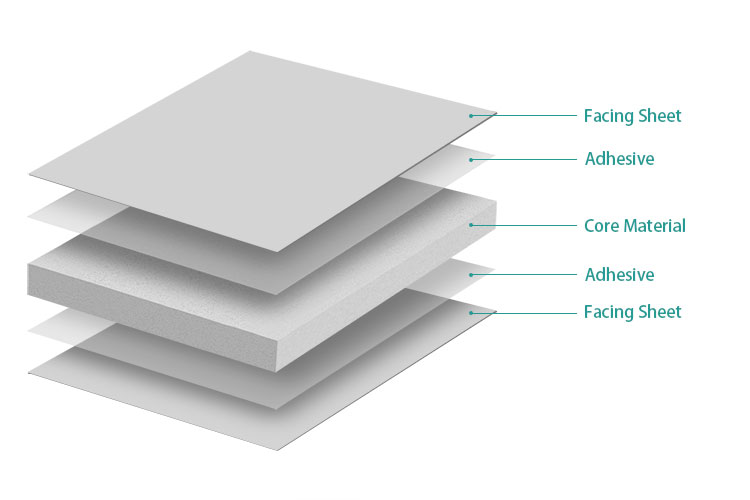

Structure of Caravan Composite Panels

The upper and lower skins of the caravan composite panel are FRP or aluminum sheets, and the middle core material is foam (XPS, PET, PU, PVC, MPP, EPP), and honeycomb (PP). The skin and core material are pressed together in a mold. The sandwich structure makes it have high impact resistance.

Highlights of TOPOLO Caravan Composite Panels

Customize Your Caravan Composite Panels

TOPOLO provides various specifications of composite panels for RV manufacturers.
